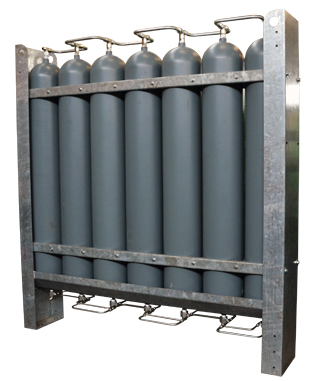

High- pressure storage packs made by modular units of 7 bottles of 80 liters each. with vertical mounting.

• The packs are made of heavy metallic structure made of bent sheet with a thickness of 40/10 and external treatment with hot dip galvanizing.

• The liquid collection circuit, placed on the lower part of the cylinders, allows the drainage of the condensed liquid and conveying towards the collection circuit.

• All cylinders are connected at the top (starting gas to providers) with pipe diameter 20x2,5mm and fittings Flare SAE 37 ° in derivation. The part below (arrival gas from the compressor) is connected with a double piping diameter 12x2mm for the gas part and diameter 10x2mm for the collection drainages circuit.

• The used cylinders are certified according to the PED regulation with operating pressure up to 275 bar.

STV807	N° 1 Storage Module made by 7 cylinders vertically mounted with total capacity of 560 liters.
STV814	N° 2 Storage Module made by 7 cylinders vertically mounted with total capacity of 1120 liters.
STV821	N° 3 Storage Module made by 7 cylinders vertically mounted with total capacity of 1680 liters.
STV828	N° 4 Storage Module made by 7 cylinders vertically mounted with total capacity of 2240 liters.
STV835	N° 5 Storage Module made by 7 cylinders vertically mounted with total capacity of 2800 liters.
STV842	N° 6 Storage Module made by 7 cylinders vertically mounted with total capacity of 3360 liters.
